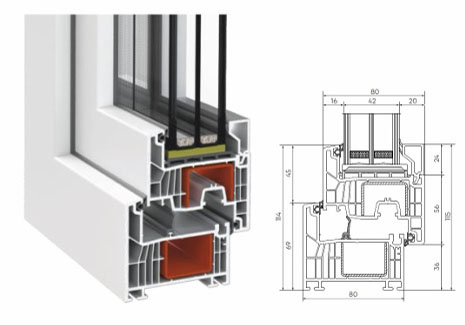

80mm – 2 or 3 glasses
Number of profile chambers – 7
Installation depth – 80 mm
Uf – 1.1 W/m2 K
Ug – 0.5 W/m2 K
Uw -0.79 W/m2 K
Sealing system – 3 contours
Filling thickness – 42 mm
Min. dimensions of the structure – 400×400 mm
Max. dimensions of the structure – 3000×3000 mm
Max. dimensions of the structure – 1200×2400 mm
Burglar resistance – RC2

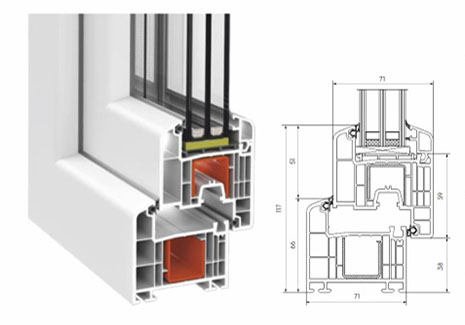

71mm – 2 or 3 glasses
Number of profile chambers – 6
Installation depth – 71 mm
Uf – 1.2 W/m2 K
Ug – 0.5 W/m2 K
Uw -0.85 W/m2 K
Sealing system – 2 contours
Filling thickness – 24, 32, 42 mm
Min. construction dimensions – 400×400 mm
Max. construction dimensions – 3000×3000 mm
Max. construction dimensions – 1200×2400 mm
Burglar resistance – RC2

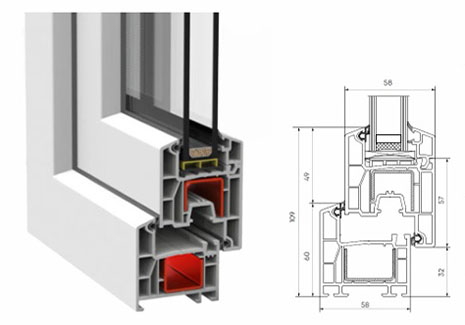

58mm – 2 glasses
Number of profile chambers – 4
Installation depth – 58 mm
Uf – 1.6 W/m2 K
Ug – 0.6 W/m2 K
Uw -1.2 W/m2 K
Sealing system – 2 contours
Filling thickness – 4, 24, 32 mm
Min. construction dimensions – 400×400 mm
Max. construction dimensions – 3000×3000 mm
Max. construction dimensions – 1200×2400 mm
Burglar resistance – RC2
Possible options:
-colour only outside, colour on both sides
-friction opening
-hidden fittings
-burglar-proof fittings
-air valves
-covering with protective and tinted films
-injection of internet gases
-sun protection roller blinds
-mosquito nets
